规格 Specifications
Interrupting Rating: 2000A @ 32 VDC
Voltage Rating: 32 V/48V/72V/125VDC
Operating Temperature Range: -40˚C to + 125˚C
Housing Material: PPA-GF33HS
Clear Top Housing Material: PES (top) PPA-GF33HS (bottom)
Terminals: Copper (Silver plated copper available)
M6 or M8 bolts available
Mounting Torque: 8-14 Nm M6, 12-18 Nm M8
Complies with: ISO 8820-5

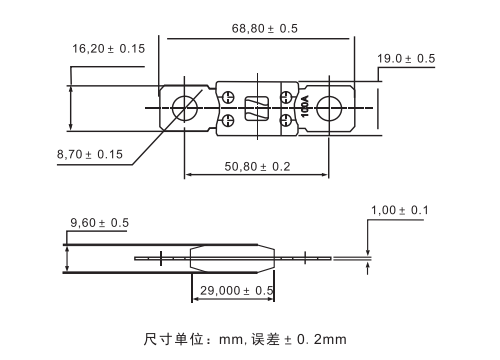

Dimensions/尺寸：
FUSE PARAMETERS：保险丝参数：
| TYPE | Current Rating | Voltage Drop | Cold Resistance | I 2 t |
| (A) | (mV) | (mΩ) | (A 2 s) | |
| LDANM-40 | 40 | 132 | 2.51 | 8700 |
| LDANM-60 | 60 | 119 | 1.504 | 21000 |
| LDANM-80 | 80 | 87 | 0.72 | 21500 |
| LDANM-100 | 100 | 87 | 0.562 | 31100 |
| LDANM-125 | 125 | 80 | 0.423 | 57800 |
| LDANM-150 | 150 | 92 | 0.352 | 100000 |
| LDANM-175 | 175 | 86 | 0.294 | 168000 |
| LDANM-200 | 200 | 83 | 0.257 | 204000 |
| LDANM-225 | 225 | 82 | 0.222 | 257000 |
| LDANM-250 | 250 | 82 | 0.201 | 389000 |
| LDANM-300 | 300 | 74 | 0.167 | 315000 |
| LDANM-350 | 350 | 68 | 0.138 | 500000 |
| LDANM-400 | 400 | 64 | 0.126 | 610000 |
| LDANM-450 | 450 | 60 | 0.112 | 1050000 |
| LDANM-500 | 500 | 58 | 0.092 | 2050000 |
Time-Current Characteristics：电流时间特征
| % of Rating | Opening Time Min / Max (s) | |
| 100A - 250A | 300A-500A | |
| 75 | – / – | – / – |
| 100 | 4 h / – | 4 h / – |
| 135 | 120 s / 1,800 s | – / – |
| 200 | 1 s / 15 s | 1 s / 15 s |
| 350 | 0.300 s / 5 s | 0.500 s / 5 s |
| 600 | 0.100 s / 1 s | 0.100 s / 1 s |

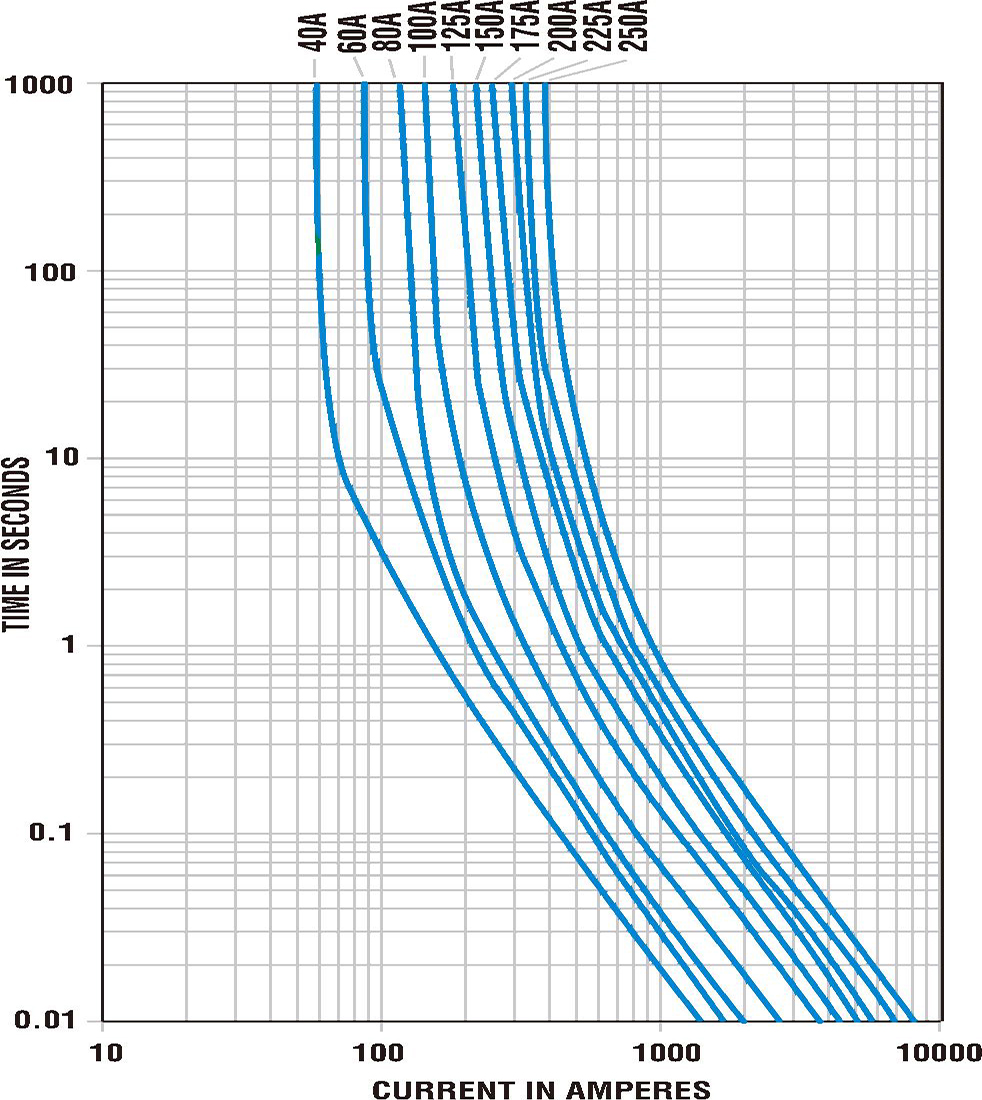

Time-Current Characteristic Curves：时间-电流特性曲线
<
<
<
<
