规格 Specifications

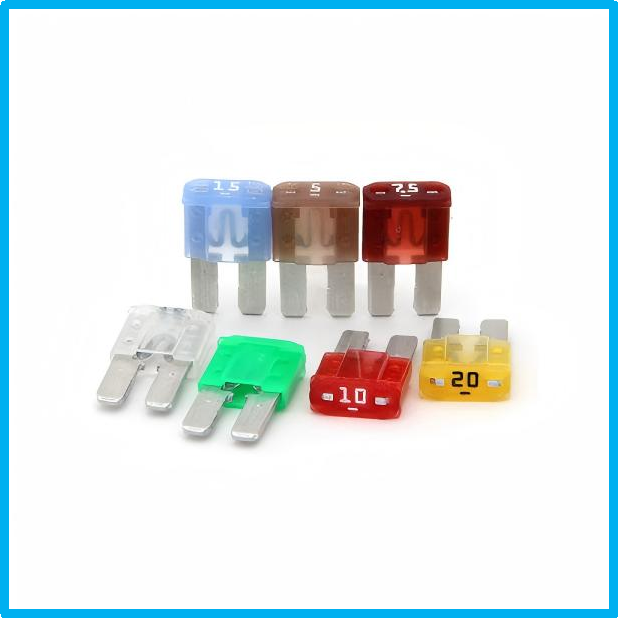

The MICRO2 Fuse is the new standard for vehicle circuit protection. Its sub-miniature design meets the need for more circuits to be protected while utilizing less space and its ability to cope with high temperatures in adverse environments makes the MICRO2 Fuse of recommended choice for protection.
‧根据使用状况，保险丝特性可能改变
According to the using status, the fuse characteristics may change.
‧额定电压：小于直流32V/48V
Rated voltage: DC less than 32V,
‧分断容量：1000A@32V DC ‧使用温度：-40℃～+125℃
Breaking capacity: 1000A@32V, DC, temperature: -40 ℃ ~ +125 ℃
‧材质：1、锌合金；2、塑料PC/尼龙
Material: 1、zinc alloy , 2、 PC plastic/Nylon.
Dimensions/尺寸：
FUSE PARAMETERS：保险丝参数：
| Prt Number | Rating Current(A) | Rating Voltage(V) | Typ. Voltage Drop(mV) | Cold Resistance | I2t | Color | |
| LDMIC-NL-05 | 5A | 32V | 129 | 17.4 | 17 | Orange | |
| LDMIC-NL-7.5 | 7A | 32V | 135 | 10.8 | 47 | Tan | |
| LDMIC-NL-10 | 10A | 32V | 108 | 7.82 | 89 | Red | |
| LDMIC-NL-15 | 15A | 32V | 98 | 4.58 | 189 | Blue | |
| LDMIC-NL-20 | 20A | 32V | 96 | 3.5 | 397 | Yellow | |
| LDMIC-NL-25 | 25A | 32V | 86 | 2.6 | 585 | Natural | |
| LDMIC-NL-30 | 30A | 32V | 87 | 2.1 | 1028 | Green | |
Time-Current Characteristics：电流时间特征
| % of Rating | Opening Time Min/Max(s) | ||
| 110 | 100h/- | ||
| 135 | 0.75 sec / 120 sec | ||
| 160 | 0.30 sec / 50 sec | ||
| 200 | 0.15 sec / 5 sec | ||
| 350 | 0.04 sec / 0.50 sec | ||
| 600 | 0.02 sec / 0.100 sec |
Time-Current Characteristic Curves：时间-电流特性曲线
Time-Current Characteristic Curves：时间-电流特性曲线
Temperature Rerating Curve
<
<
<
<
